TNPV12061M50BXEN
  • Share:

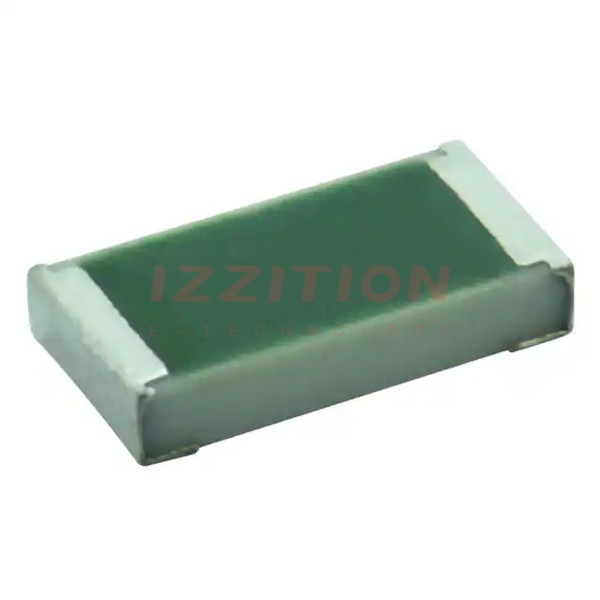

Vishay Dale TNPV12061M50BXEN

Manufacturer No:
TNPV12061M50BXEN
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
TNPV12061M50BXEN Datasheet
ECAD Model:
-
Description:
RES SMD 1.5M OHM 0.1% 1/4W 1206
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:1.5 mOhms
Tolerance:±0.1%
Power (Watts):0.25W, 1/4W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant
Temperature Coefficient:±15ppm/°C
Operating Temperature:-55°C ~ 125°C
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206
Ratings:AEC-Q200
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.026" (0.65mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$1.61
148

Please send RFQ , we will respond immediately.

Similar Products

Part Number TNPV12061M50BXEN TNPV12061M80BXEN   TNPV12061M00BXEN   TNPV12061M50BEEN
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active
Resistance 1.5 mOhms 1.8 mOhms 1 MOhms 1.5 mOhms
Tolerance ±0.1% ±0.1% ±0.1% ±0.1%
Power (Watts) 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W
Composition Thin Film Thin Film Thin Film Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant
Temperature Coefficient ±15ppm/°C ±15ppm/°C ±15ppm/°C ±25ppm/°C
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C
Package / Case 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric) 1206 (3216 Metric)
Supplier Device Package 1206 1206 1206 1206
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm) 0.026" (0.65mm) 0.026" (0.65mm) 0.026" (0.65mm)
Number of Terminations 2 2 2 2
Failure Rate - - - -
