Please send RFQ , we will respond immediately.

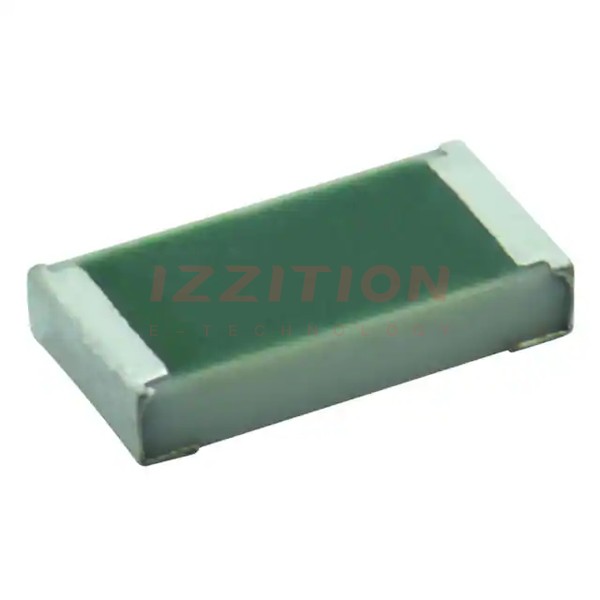

| Part Number | TNPV12061M00BEEN | TNPV12062M00BEEN | TNPV12061M00BXEN | TNPV12061M80BEEN | TNPV12061M00BYEN | TNPV12061M20BEEN | TNPV12061M50BEEN |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 2 MOhms | 1 MOhms | 1.8 mOhms | 1 MOhms | 1.2 mOhms | 1.5 mOhms |
| Tolerance | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, High Voltage, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±15ppm/°C | ±25ppm/°C | ±10ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
