Please send RFQ , we will respond immediately.

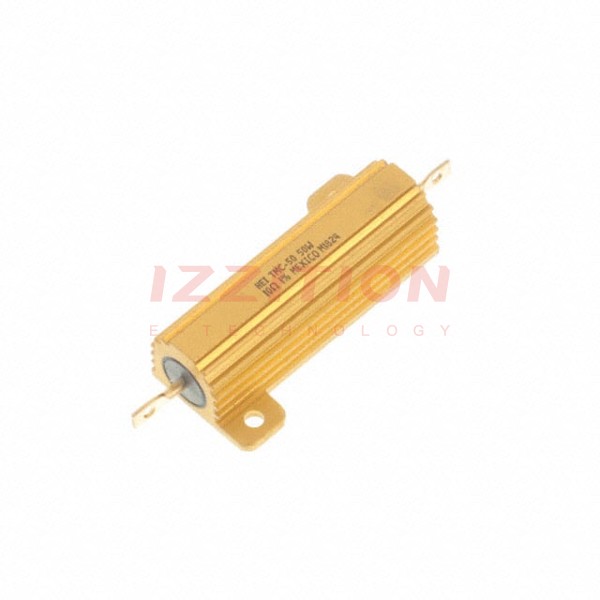

| Part Number | TMC05010R00FE02 | TMC05020R00FE02 | TMC05012R00FE02 | TMC05050R00FE02 | TMC05030R00FE02 | TMC05016R00FE02 | TMC05040R00FE02 | TMC01010R00FE02 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 20 Ohms | 12 Ohms | 50 Ohms | 30 Ohms | 16 Ohms | 40 Ohms | 10 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 12.5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.750" L x 0.800" W (19.05mm x 20.32mm) |
| Height - Seated (Max) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.405" (10.29mm) |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - | - | - | - | - |
