SOMC160122K0GEA
  • Share:

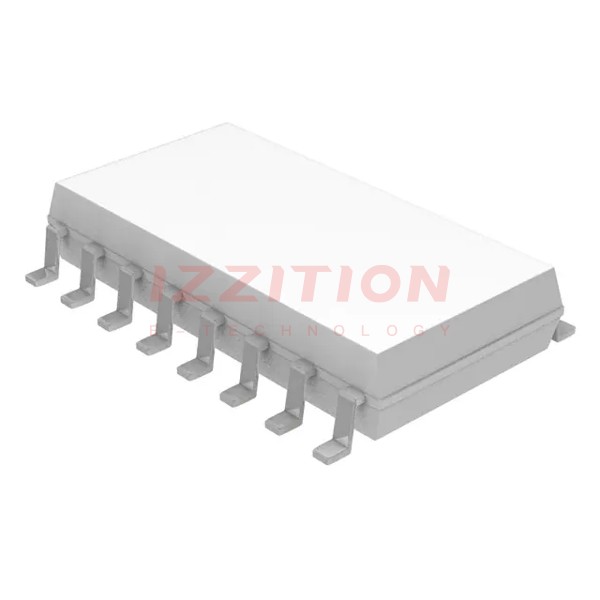

Vishay Dale SOMC160122K0GEA

Manufacturer No:
SOMC160122K0GEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
SOMC160122K0GEA Datasheet
ECAD Model:
-
Description:
RES ARRAY 15 RES 22K OHM 16SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Bussed
Resistance (Ohms):22k
Tolerance:±2%
Number of Resistors:15
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:16
Power Per Element:80mW
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 150°C
Applications:-
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.220", 5.59mm Width)
Supplier Device Package:-
Size / Dimension:0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max):0.090" (2.29mm)
0 Remaining View Similar

In Stock

$1.36
564

Please send RFQ , we will respond immediately.

Similar Products

Part Number SOMC160122K0GEA SOMC160322K0GEA   SOMC160122K0JEA   SOMC160127K0GEA   SOMC140122K0GEA   SOMC160120K0GEA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active Active
Circuit Type Bussed Isolated Bussed Bussed Bussed Bussed
Resistance (Ohms) 22k 22k 22k 27k 22k 20k
Tolerance ±2% ±2% ±5% ±2% ±2% ±2%
Number of Resistors 15 8 15 15 13 15
Resistor Matching Ratio - - - - - -
Resistor-Ratio-Drift - - - - - -
Number of Pins 16 16 16 16 14 16
Power Per Element 80mW 160mW 80mW 80mW 80mW 80mW
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
Applications - - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 16-SOIC (0.220", 5.59mm Width) 16-SOIC (0.220", 5.59mm Width) 16-SOIC (0.220", 5.59mm Width) 16-SOIC (0.220", 5.59mm Width) 14-SOIC (0.220", 5.59mm Width) 16-SOIC (0.220", 5.59mm Width)
Supplier Device Package - - - - - -
Size / Dimension 0.440" L x 0.220" W (11.18mm x 5.59mm) 0.440" L x 0.220" W (11.18mm x 5.59mm) 0.440" L x 0.220" W (11.18mm x 5.59mm) 0.440" L x 0.220" W (11.18mm x 5.59mm) 0.390" L x 0.220" W (9.91mm x 5.59mm) 0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm)
