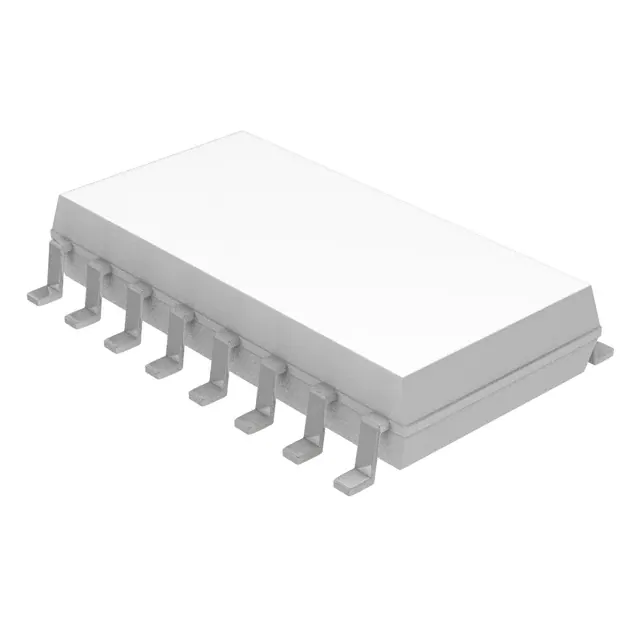

| Part Number | SOMC16011K00GEA | SOMC16031K00GEA | SOMC16011K50GEA | SOMC16012K00GEA | SOMC16011K20GEA | SOMC14011K00GEA |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Isolated | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 1K | 1K | 1.5k | 2K | 1.2k | 1K |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 15 | 8 | 15 | 15 | 15 | 13 |
| Resistor Matching Ratio | - | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - | - |
| Number of Pins | 16 | 16 | 16 | 16 | 16 | 14 |
| Power Per Element | 80mW | 160mW | 80mW | 80mW | 80mW | 80mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Applications | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.220", 5.59mm Width) | 16-SOIC (0.220", 5.59mm Width) | 16-SOIC (0.220", 5.59mm Width) | 16-SOIC (0.220", 5.59mm Width) | 16-SOIC (0.220", 5.59mm Width) | 14-SOIC (0.220", 5.59mm Width) |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.390" L x 0.220" W (9.91mm x 5.59mm) |
| Height - Seated (Max) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) |
