SOMC1405191AGEA
  • Share:

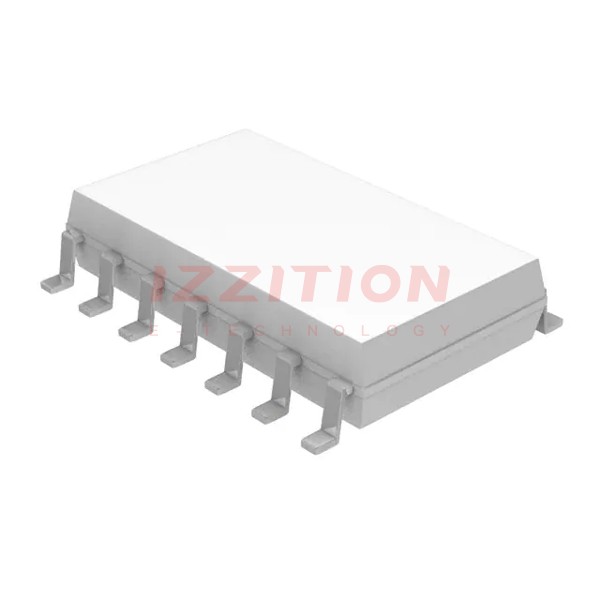

Vishay Dale SOMC1405191AGEA

Manufacturer No:
SOMC1405191AGEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
SOMC1405191AGEA Datasheet
ECAD Model:
-
Description:
RES NTWRK 24 RES MULT OHM 14SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Dual Terminator
Resistance (Ohms):330, 470
Tolerance:±2%
Number of Resistors:24
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:14
Power Per Element:80mW
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 150°C
Applications:-
Mounting Type:Surface Mount
Package / Case:14-SOIC (0.220", 5.59mm Width)
Supplier Device Package:-
Size / Dimension:0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max):0.090" (2.29mm)
0 Remaining View Similar

In Stock

$2.22
191

Please send RFQ , we will respond immediately.

Similar Products

Part Number SOMC1405191AGEA SOMC1605191AGEA   SOMC1405131AGEA   SOMC1405141AGEA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active
Circuit Type Dual Terminator Dual Terminator Dual Terminator Dual Terminator
Resistance (Ohms) 330, 470 330, 470 220, 330 270
Tolerance ±2% ±2% ±2% ±2%
Number of Resistors 24 28 24 24
Resistor Matching Ratio - - - -
Resistor-Ratio-Drift - - - -
Number of Pins 14 16 14 14
Power Per Element 80mW 80mW 80mW 80mW
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
Applications - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 14-SOIC (0.220", 5.59mm Width) 16-SOIC (0.220", 5.59mm Width) 14-SOIC (0.220", 5.59mm Width) 14-SOIC (0.220", 5.59mm Width)
Supplier Device Package - - - -
Size / Dimension 0.390" L x 0.220" W (9.91mm x 5.59mm) 0.440" L x 0.220" W (11.18mm x 5.59mm) 0.390" L x 0.220" W (9.91mm x 5.59mm) 0.390" L x 0.220" W (9.91mm x 5.59mm)
Height - Seated (Max) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm) 0.090" (2.29mm)
