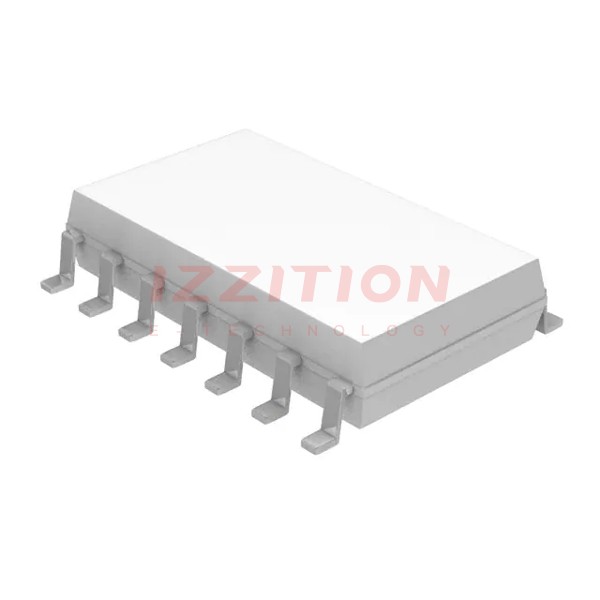

| Part Number | SOMC1403180RGEA | SOMC1603180RGEA | SOMC1403100RGEA | SOMC1403110RGEA | SOMC1403150RGEA |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 180 | 180 | 100 | 110 | 150 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 7 | 8 | 7 | 7 | 7 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 14 | 16 | 14 | 14 | 14 |
| Power Per Element | 160mW | 160mW | 160mW | 160mW | 160mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Applications | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 14-SOIC (0.220", 5.59mm Width) | 16-SOIC (0.220", 5.59mm Width) | 14-SOIC (0.220", 5.59mm Width) | 14-SOIC (0.220", 5.59mm Width) | 14-SOIC (0.220", 5.59mm Width) |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.440" L x 0.220" W (11.18mm x 5.59mm) | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.390" L x 0.220" W (9.91mm x 5.59mm) | 0.390" L x 0.220" W (9.91mm x 5.59mm) |
| Height - Seated (Max) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) | 0.090" (2.29mm) |
