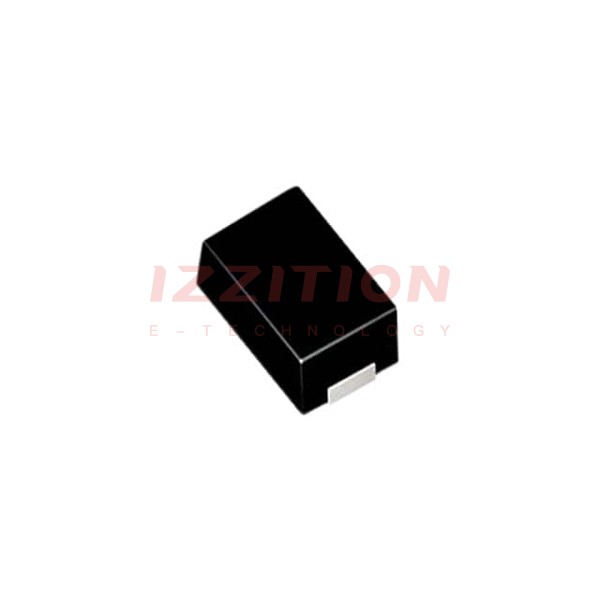

| Part Number | SM-22K770FE6 | SM-22K670FE6 | SM-22K700FE6 | SM-22K740FE6 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Resistance | 2.77 kOhms | 2.67 kOhms | 2.7 kOhms | 2.74 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | - | - | - | - |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 275°C | -55°C ~ 275°C | -55°C ~ 275°C | -55°C ~ 275°C |
| Package / Case | 2615 (6538 Metric), J-Lead | 2615 (6538 Metric), J-Lead | 2615 (6538 Metric), J-Lead | 2615 (6538 Metric), J-Lead |
| Supplier Device Package | SM2 | SM2 | SM2 | SM2 |
| Ratings | - | - | - | - |
| Size / Dimension | 0.260" L x 0.155" W (6.60mm x 3.94mm) | 0.260" L x 0.155" W (6.60mm x 3.94mm) | 0.260" L x 0.155" W (6.60mm x 3.94mm) | 0.260" L x 0.155" W (6.60mm x 3.94mm) |
| Height - Seated (Max) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) | 0.125" (3.18mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
