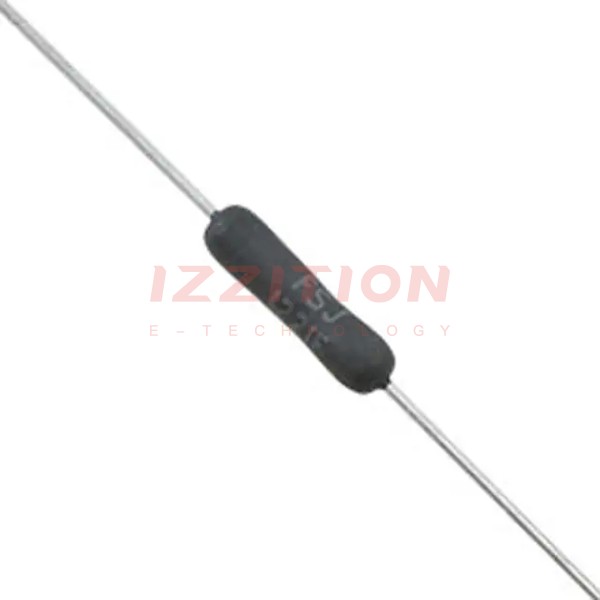

| Part Number | RWR80S1000FRB12 | RWR80S1001FRB12 | RWR80S1000FSB12 | RWR80S1050FRB12 | RWR80S1020FRB12 | RWR80S1000BRB12 | RWR80S1000DRB12 | RWR80S1000FMB12 | RWR80S1000FPB12 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 1 kOhms | 100 Ohms | 105 Ohms | 102 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 100 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±0.1% | ±0.5% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | R (0.01%) | R (0.01%) | S (0.001%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | M (1%) | P (0.1%) |
