Please send RFQ , we will respond immediately.

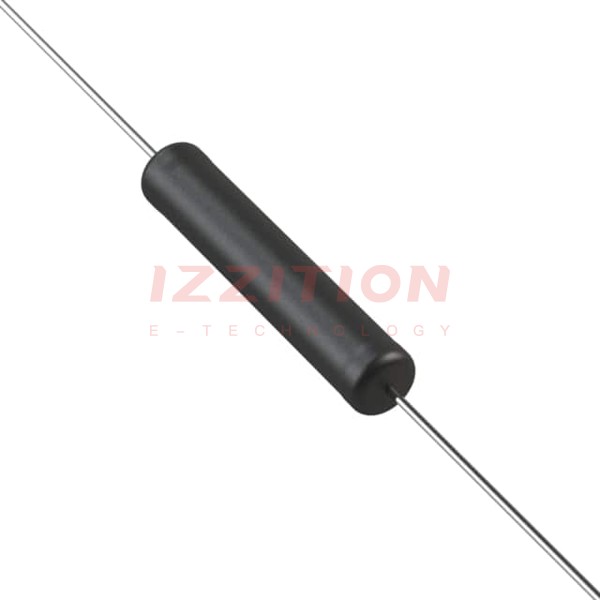

| Part Number | RWR78S1501FRB12 | RWR78S1581FRB12 | RWR78S1541FRB12 | RWR78S1502FRB12 | RWR78S1501FSB12 | RWR78S1301FRB12 | RWR78S1401FRB12 | RWR78S1500FRB12 | RWR78S1501FMB12 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.5 kOhms | 1.58 kOhms | 1.54 kOhms | 15 kOhms | 1.5 kOhms | 1.3 kOhms | 1.4 kOhms | 150 Ohms | 1.5 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±30ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | S (0.001%) | R (0.01%) | R (0.01%) | R (0.01%) | M (1%) |
