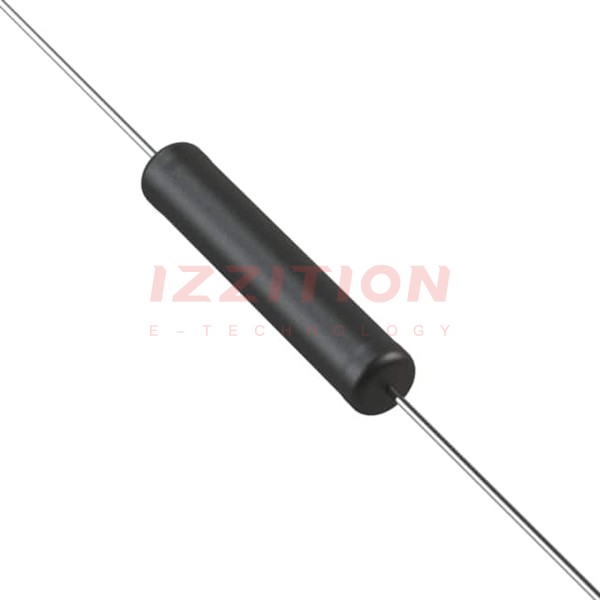

| Part Number | RWR78S1500FRB12 | RWR78S1501FRB12 | RWR78S15R0FRB12 | RWR78S1540FRB12 | RWR78S1502FRB12 | RWR78S1580FRB12 | RWR78S1500FSB12 | RWR78S1300FRB12 | RWR78S1400FRB12 | RWR78S1500DRB12 | RWR78S1500FMB12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 1.5 kOhms | 15 Ohms | 154 Ohms | 15 kOhms | 158 Ohms | 150 Ohms | 130 Ohms | 140 Ohms | 150 Ohms | 150 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±0.5% | ±1% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant | Military, Moisture Resistant |
| Temperature Coefficient | ±30ppm/°C | ±20ppm/°C | ±30ppm/°C | ±30ppm/°C | ±20ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | S (0.001%) | R (0.01%) | R (0.01%) | R (0.01%) | M (1%) |
