Please send RFQ , we will respond immediately.

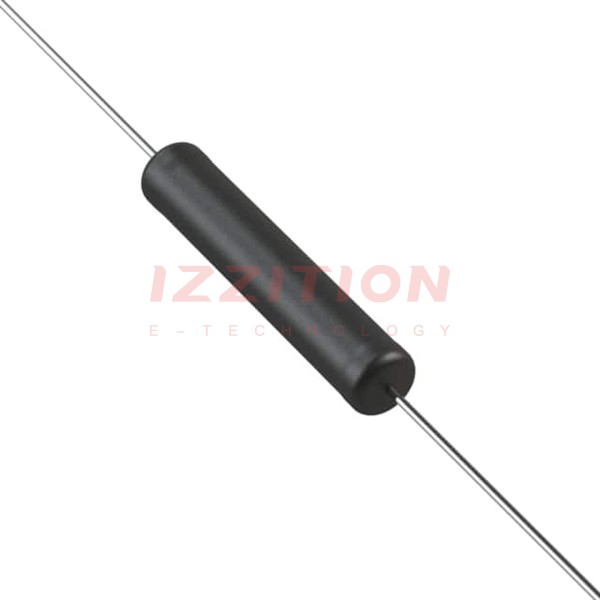

| Part Number | RWR78N1000FSB12 | RWR78N1100FSB12 | RWR78N10R0FSB12 | RWR78N1001FSB12 | RWR78N1000BSB12 | RWR78N1000FMB12 | RWR78N1000FRB12 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 110 Ohms | 10 Ohms | 1 kOhms | 100 Ohms | 100 Ohms | 100 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±0.1% | ±1% | ±1% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive |
| Temperature Coefficient | ±30ppm/°C | ±30ppm/°C | ±50ppm/°C | ±20ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) | 0.375" Dia x 1.780" L (9.53mm x 45.21mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) | S (0.001%) | M (1%) | R (0.01%) |
