Vishay Dale-RS01A800R0FS70 - Through Hole Resistors Product Specifications and Latest Quotes

Part Number	RS01A800R0FS70	RS01A820R0FS70	RS01A300R0FS70	RS01A400R0FS70	RS01A500R0FS70	RS01A600R0FS70	RS01A700R0FS70	RS01A800R0FE70
Manufacturer	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Resistance	800 Ohms	820 Ohms	300 Ohms	400 Ohms	500 Ohms	600 Ohms	700 Ohms	800 Ohms
Tolerance	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Power (Watts)	1W	1W	1W	1W	1W	1W	1W	1W
Composition	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound	Wirewound
Features	Moisture Resistant	Moisture Resistant	Moisture Resistant	Moisture Resistant	Moisture Resistant	Moisture Resistant	Moisture Resistant	Moisture Resistant
Temperature Coefficient	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C
Operating Temperature	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C	-65°C ~ 250°C
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)	0.094" Dia x 0.406" L (2.39mm x 10.31mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Number of Terminations	2	2	2	2	2	2	2	2
Failure Rate	-	-	-	-	-	-	-	-

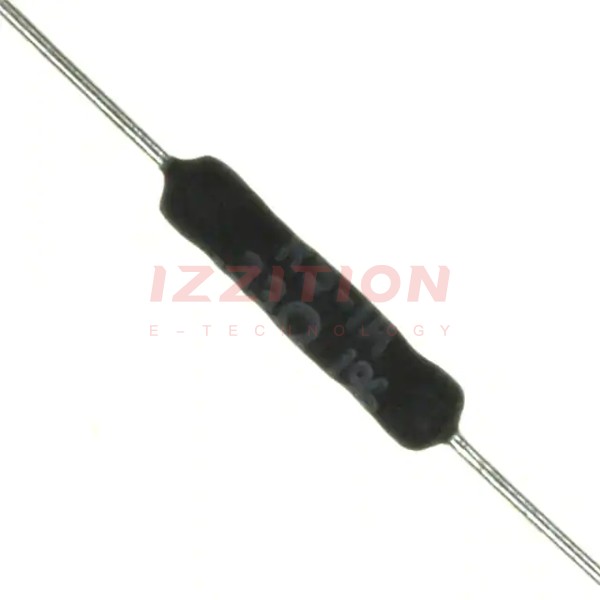

Vishay Dale RS01A800R0FS70
