Please send RFQ , we will respond immediately.

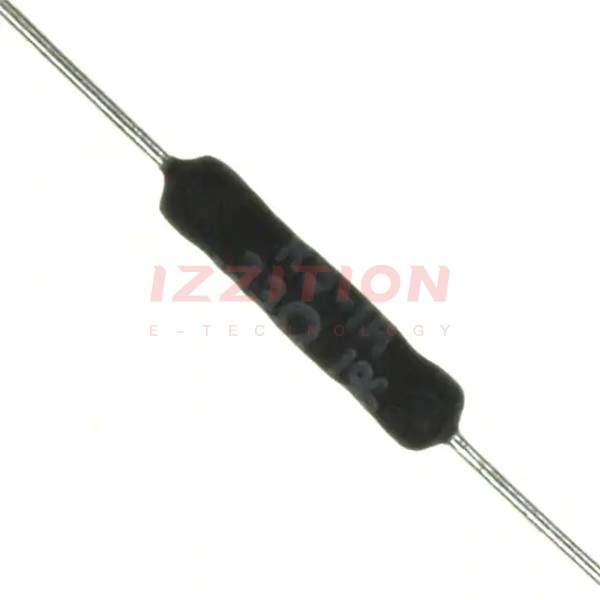

| Part Number | RS01A20R00FS70 | RS01A22R00FS70 | RS01A25R00FS70 | RS01A30R00FS70 | RS01A40R00FS70 | RS01A50R00FS70 | RS01A10R00FS70 | RS01A20R00FE70 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 22 Ohms | 25 Ohms | 30 Ohms | 40 Ohms | 50 Ohms | 10 Ohms | 20 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) | 0.094" Dia x 0.406" L (2.39mm x 10.31mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
