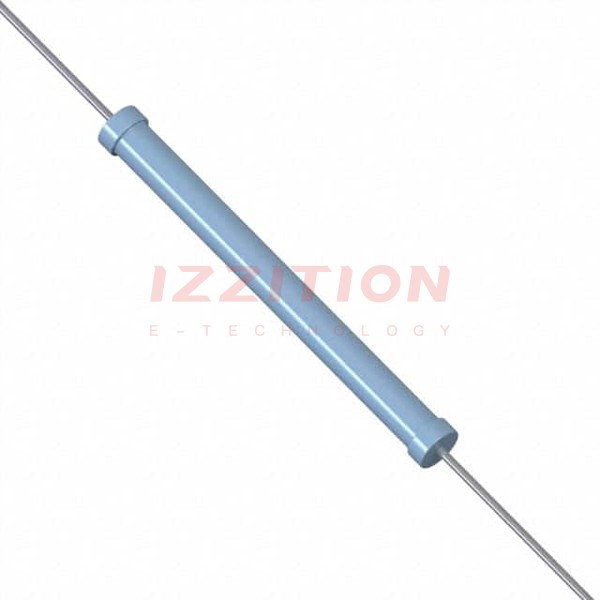

| Part Number | RNX12520M0FKLB | RNX12520M0FKLBP | RNX12520M0FNLB | RNX12522M0FKLB | RNX12530M0FKLB | RNX12540M0FKLB | RNX12550M0FKLB | RNX12560M0FKLB | RNX12570M0FKLB | RNX12510M0FKLB |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 20 mOhms | 20 mOhms | 20 mOhms | 22 mOhms | 30 mOhms | 40 mOhms | 50 mOhms | 60 mOhms | 70 mOhms | 10 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety | Flame Proof, High Voltage, Safety |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±200ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C | -55°C ~ 225°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) | 0.140" Dia x 1.290" L (3.56mm x 32.77mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
