RNX02522M0JKR6
  • Share:

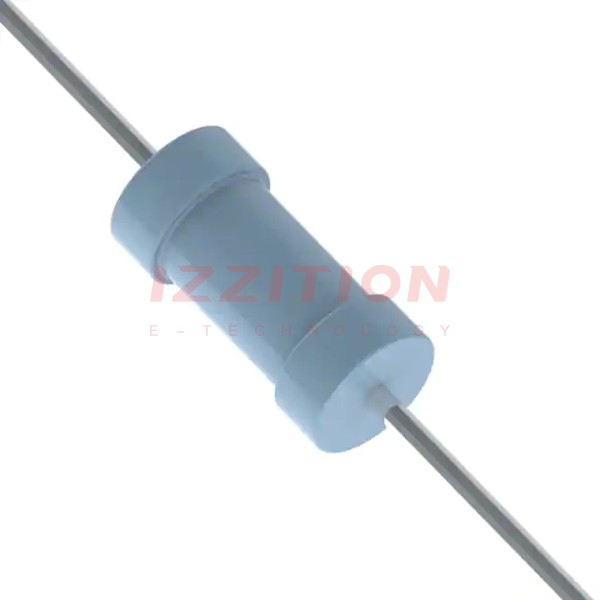

Vishay Dale RNX02522M0JKR6

Manufacturer No:
RNX02522M0JKR6
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
RNX02522M0JKR6 Datasheet
ECAD Model:
-
Description:
RES 22M OHM 5% 1/2W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:22 mOhms
Tolerance:±5%
Power (Watts):0.5W, 1/2W
Composition:Metal Oxide Film
Features:Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 150°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.140" Dia x 0.290" L (3.56mm x 7.37mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

-
414

Please send RFQ , we will respond immediately.

Similar Products

Part Number RNX02522M0JKR6 RNX02522M0JKR7   RNX02522M0JKR8   RNX02522K0JKR6   RNX02522M0FKR6
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 22 mOhms 22 mOhms 22 mOhms 22 kOhms 22 mOhms
Tolerance ±5% ±5% ±5% ±5% ±1%
Power (Watts) 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W
Composition Metal Oxide Film Metal Oxide Film Metal Oxide Film Metal Oxide Film Metal Oxide Film
Features Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
Package / Case Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial
Size / Dimension 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm)
Height - Seated (Max) - - - - -
Number of Terminations 2 2 2 2 2
Failure Rate - - - - -
