Please send RFQ , we will respond immediately.

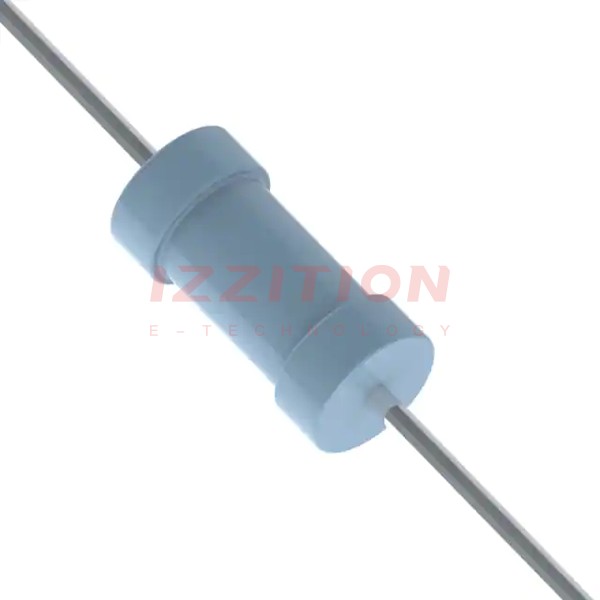

| Part Number | RNX02522M0FKR8 | RNX02522M0FKRC | RNX02522M0FNR8 | RNX02522M0JKR8 | RNX02522M1FKR8 | RNX02522M5FKR8 | RNX02520M0FKR8 | RNX02522M0FHR8 | RNX02522M0FKR6 | RNX02522M0FKR7 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 22 mOhms | 22 mOhms | 22 mOhms | 22 mOhms | 22.1 mOhms | 22.5 mOhms | 20 mOhms | 22 mOhms | 22 mOhms | 22 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety | Flame Retardant Coating, High Voltage, Safety |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±200ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±50ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) | 0.140" Dia x 0.290" L (3.56mm x 7.37mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
