RNX02522K0JKR6
  • Share:

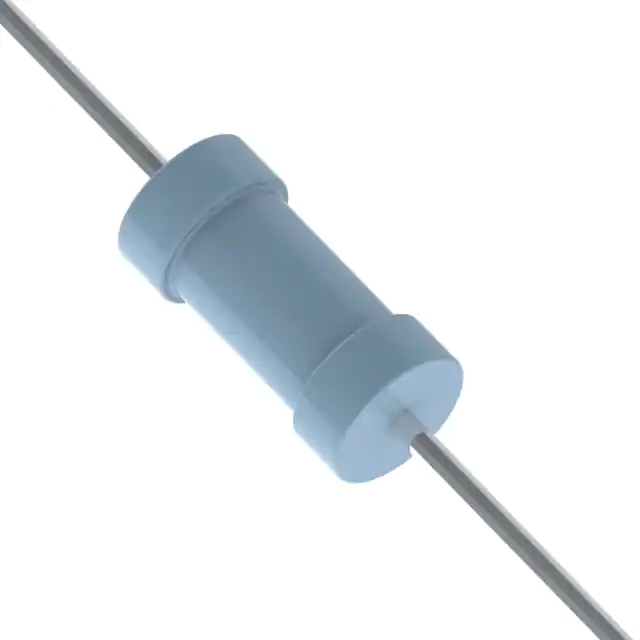

Vishay Dale RNX02522K0JKR6

Manufacturer No:
RNX02522K0JKR6
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
RNX02522K0JKR6 Datasheet
ECAD Model:
-
Description:
RES 22K OHM 5% 1/2W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:22 kOhms
Tolerance:±5%
Power (Watts):0.5W, 1/2W
Composition:Metal Oxide Film
Features:Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 150°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.140" Dia x 0.290" L (3.56mm x 7.37mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

-
157

Please send RFQ , we will respond immediately.

Similar Products

Part Number RNX02522K0JKR6 RNX02522K0JKR7   RNX02522K0JKR8   RNX02522K0JKRE   RNX02522M0JKR6
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 22 kOhms 22 kOhms 22 kOhms 22 kOhms 22 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5%
Power (Watts) 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W
Composition Metal Oxide Film Metal Oxide Film Metal Oxide Film Metal Oxide Film Metal Oxide Film
Features Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety Flame Retardant Coating, High Voltage, Safety
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C -55°C ~ 150°C
Package / Case Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial
Size / Dimension 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm) 0.140" Dia x 0.290" L (3.56mm x 7.37mm)
Height - Seated (Max) - - - - -
Number of Terminations 2 2 2 2 2
Failure Rate - - - - -
