Please send RFQ , we will respond immediately.

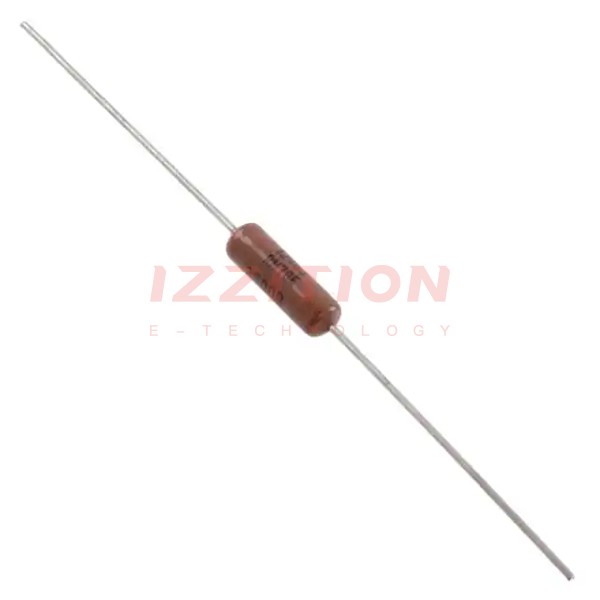

| Part Number | RN70E1000BB14 | RN70E1000FB14 | RN70E1002BB14 | RN70E1001BB14 | RN70E1500BB14 | RN70E1003BB14 | RN70E1004BB14 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 100 Ohms | 10 kOhms | 1 kOhms | 150 Ohms | 100 kOhms | 1 MOhms |
| Tolerance | ±0.1% | ±1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
