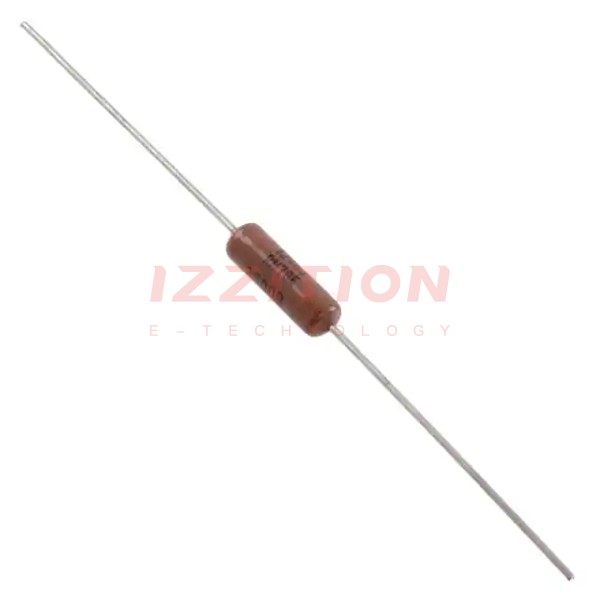

| Part Number | RN70D1501FRE6 | RN70D1541FRE6 | RN70D1503FRE6 | RN70D1581FRE6 | RN70D1502FRE6 | RN70D1201FRE6 | RN70D1301FRE6 | RN70D1401FRE6 | RN70D1500FRE6 | RN70D1501FR36 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.5 kOhms | 1.54 kOhms | 150 kOhms | 1.58 kOhms | 15 kOhms | 1.2 kOhms | 1.3 kOhms | 1.4 kOhms | 150 Ohms | 1.5 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W | 0.75W, 3/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
