Please send RFQ , we will respond immediately.

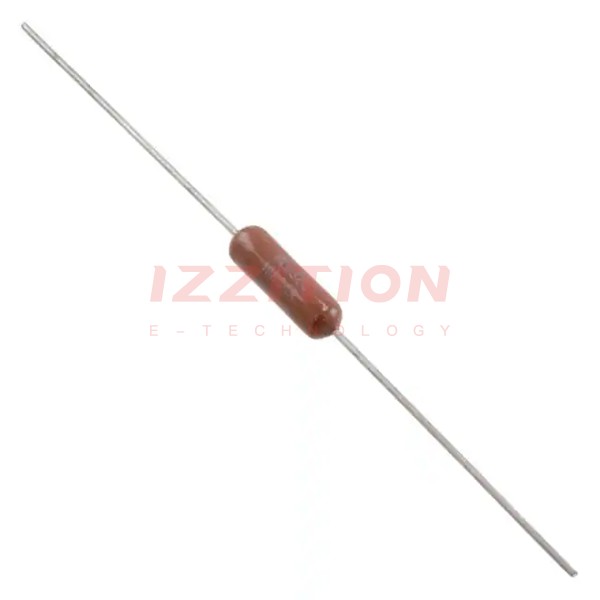

| Part Number | RLR32C5600GMRE5 | RLR32C5600GMRE8 | RLR32C5600GMRE6 | RLR32C5600GMRE7 | RLR32C5602GMRE5 | RLR32C5600GRRE5 | RLR32C5600GPRE5 | RLR32C5601GMRE5 | RLR32C5603GMRE5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 560 Ohms | 560 Ohms | 560 Ohms | 560 Ohms | 56 kOhms | 560 Ohms | 560 Ohms | 5.6 kOhms | 560 kOhms |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable | Military, Moisture Resistant, Weldable |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) | 0.190" Dia x 0.562" L (4.83mm x 14.27mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | R (0.01%) | P (0.1%) | M (1%) | M (1%) |
