Please send RFQ , we will respond immediately.

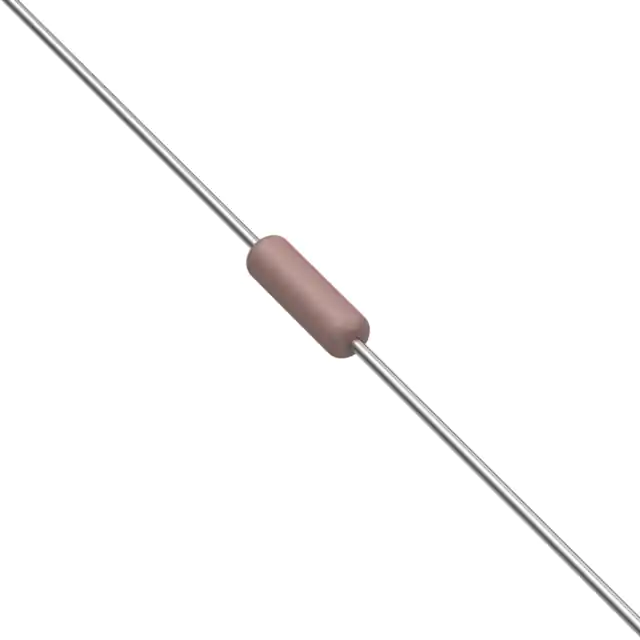

| Part Number | RL07S561GRSL | RL07S561JRSL | RL07S562GRSL | RL07S563GRSL | RL07S511GRSL | RL07S560GRSL | RL07S561GBSL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 560 Ohms | 560 Ohms | 5.6 kOhms | 56 kOhms | 510 Ohms | 56 Ohms | 560 Ohms |
| Tolerance | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film | Metal Film |
| Features | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety | Flame Retardant Coating, Military, Moisture Resistant, Safety |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
