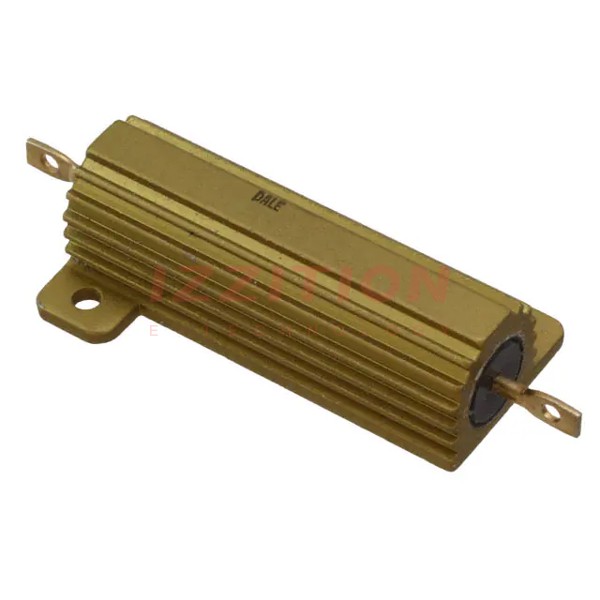

| Part Number | RH0501R000FC02 | RH0508R000FC02 | RH0505R000FC02 | RH0501R000FE02 | RH0502R000FC02 | RH0501R500FC02 | RH0506R000FC02 | RH0101R000FC02 | RH0501K000FC02 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 Ohms | 8 Ohms | 5 Ohms | 1 Ohms | 2 Ohms | 1.5 Ohms | 6 Ohms | 1 Ohms | 1 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 50W | 50W | 50W | 50W | 50W | 50W | 50W | 12.5W | 50W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) |
| Height - Seated (Max) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.405" (10.29mm) | 0.625" (15.87mm) |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - | - | - | - | - | - |
