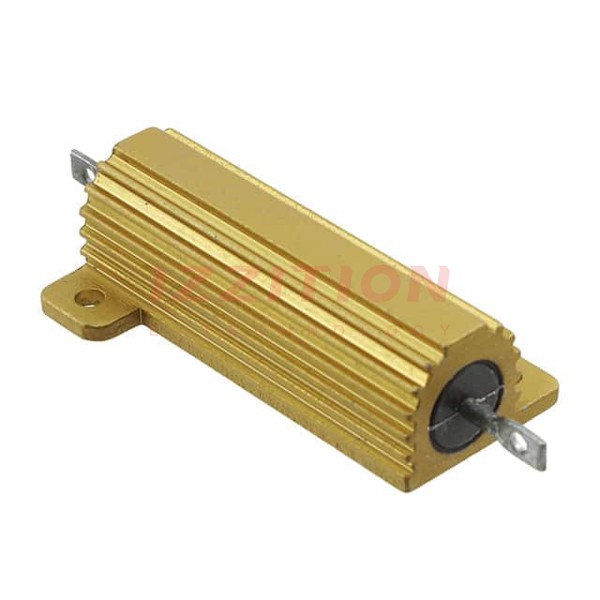

| Part Number | RER55F10R0RC02 | RER55F10R5RC02 | RER55F10R7RC02 | RER55F14R0RC02 | RER55F13R0RC02 | RER55F15R0RC02 | RER45F10R0RC02 | RER55F1000RC02 | RER55F1010RC02 | RER55F1050RC02 | RER55F10R0MC02 | RER55F10R0PC02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 10.5 Ohms | 10.7 Ohms | 14 Ohms | 13 Ohms | 15 Ohms | 10 Ohms | 100 Ohms | 101 Ohms | 105 Ohms | 10 Ohms | 10 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 30W | 30W | 30W | 30W | 30W | 30W | 10W | 30W | 30W | 30W | 30W | 30W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive | Military, Moisture Resistant, Non-Inductive |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 1.968" L x 1.140" W (49.99mm x 28.96mm) |
| Height - Seated (Max) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.405" (10.29mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) | 0.625" (15.87mm) |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | R (0.01%) | M (1%) | P (0.1%) |
