RCWL1218R620JNEA
  • Share:

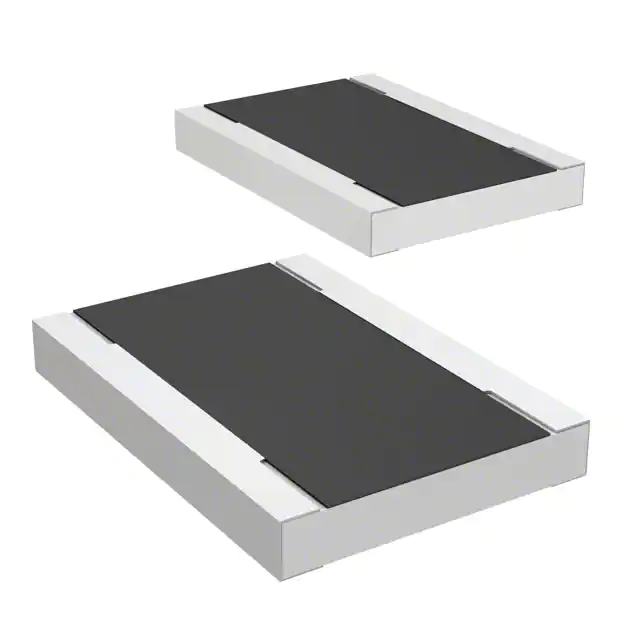

Vishay Dale RCWL1218R620JNEA

Manufacturer No:
RCWL1218R620JNEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
RCWL1218R620JNEA Datasheet
ECAD Model:
-
Description:
RES 0.62 OHM 5% 1W 1218
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:620 mOhms
Tolerance:±5%
Power (Watts):1W
Composition:Thick Film
Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:1218 (3246 Metric)
Supplier Device Package:1218
Ratings:AEC-Q200
Size / Dimension:0.126" L x 0.181" W (3.20mm x 4.60mm)
Height - Seated (Max):0.024" (0.60mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.15
2,853

Please send RFQ , we will respond immediately.

Similar Products

Part Number RCWL1218R620JNEA RCWL1218R680JNEA   RCWL1218R820JNEA   RCWL1210R620JNEA   RCWL1218R120JNEA   RCWL1218R220JNEA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active Active
Resistance 620 mOhms 680 mOhms 820 mOhms 620 mOhms 120 mOhms 220 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 1W 1W 1W 0.333W, 1/3W 1W 1W
Composition Thick Film Thick Film Thick Film Thick Film Thick Film Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Package / Case 1218 (3246 Metric) 1218 (3246 Metric) 1218 (3246 Metric) 1210 (3225 Metric) 1218 (3246 Metric) 1218 (3246 Metric)
Supplier Device Package 1218 1218 1218 1210 1218 1218
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.126" L x 0.181" W (3.20mm x 4.60mm) 0.126" L x 0.181" W (3.20mm x 4.60mm) 0.126" L x 0.181" W (3.20mm x 4.60mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.181" W (3.20mm x 4.60mm) 0.126" L x 0.181" W (3.20mm x 4.60mm)
Height - Seated (Max) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm)
Number of Terminations 2 2 2 2 2 2
Failure Rate - - - - - -
