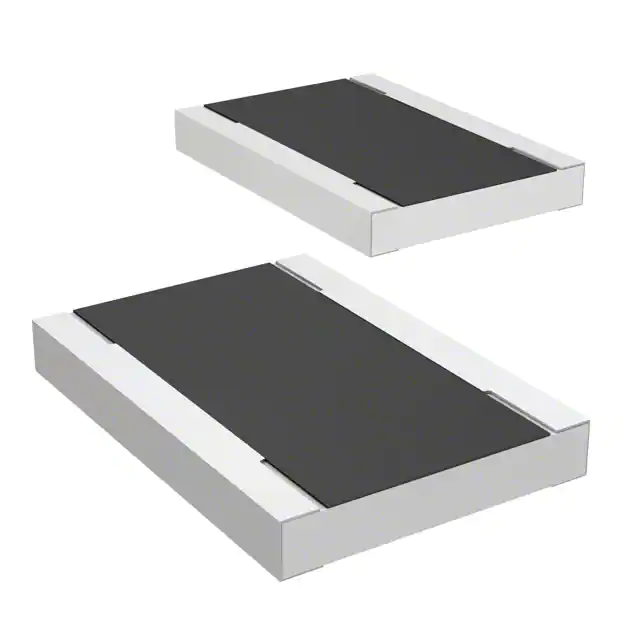

| Part Number | RCWL1218R200JNEA | RCWL1218R220JNEA | RCWL1218R300JNEA | RCWL1218R250JNEA | RCWL1218R500JNEA | RCWL1218R240JNEA | RCWL1218R270JNEA | RCWL1210R200JNEA | RCWL1218R100JNEA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 mOhms | 220 mOhms | 300 mOhms | 250 mOhms | 500 mOhms | 240 mOhms | 270 mOhms | 200 mOhms | 100 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 0.333W, 1/3W | 1W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1210 (3225 Metric) | 1218 (3246 Metric) |
| Supplier Device Package | 1218 | 1218 | 1218 | 1218 | 1218 | 1218 | 1218 | 1210 | 1218 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
