Please send RFQ , we will respond immediately.

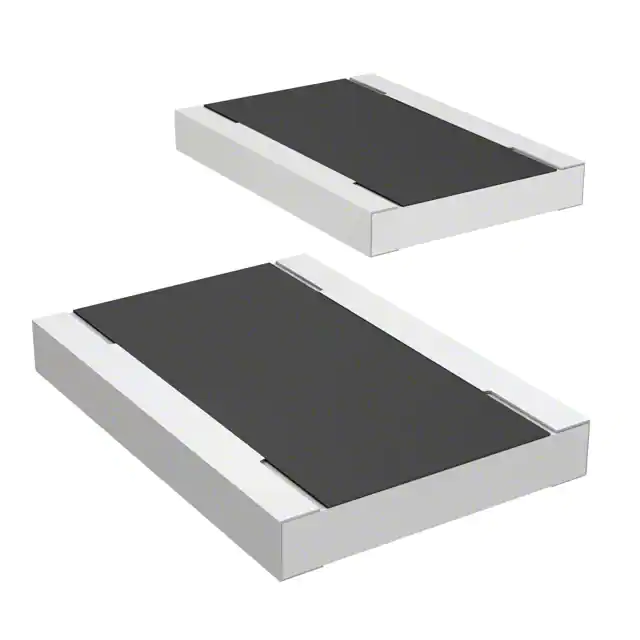

| Part Number | RCWL1218R180JNEA | RCWL1218R680JNEA | RCWL1210R180JNEA | RCWL1218R100JNEA | RCWL1218R110JNEA | RCWL1218R120JNEA | RCWL1218R130JNEA | RCWL1218R150JNEA | RCWL1218R160JNEA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 180 mOhms | 680 mOhms | 180 mOhms | 100 mOhms | 110 mOhms | 120 mOhms | 130 mOhms | 150 mOhms | 160 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 0.333W, 1/3W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1218 (3246 Metric) | 1218 (3246 Metric) | 1210 (3225 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) | 1218 (3246 Metric) |
| Supplier Device Package | 1218 | 1218 | 1210 | 1218 | 1218 | 1218 | 1218 | 1218 | 1218 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) | 0.126" L x 0.181" W (3.20mm x 4.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
