RCWL1210R200JNEA
  • Share:

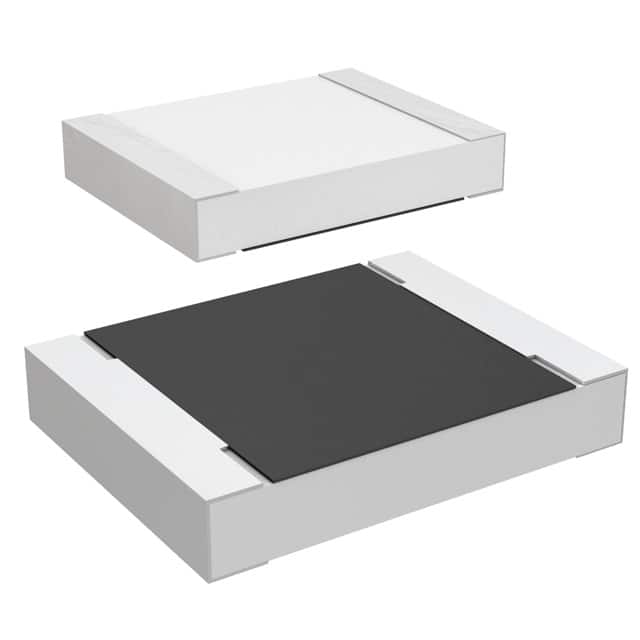

Vishay Dale RCWL1210R200JNEA

Manufacturer No:
RCWL1210R200JNEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
RCWL1210R200JNEA Datasheet
ECAD Model:
-
Description:
RES 0.2 OHM 5% 1/3W 1210
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:200 mOhms
Tolerance:±5%
Power (Watts):0.333W, 1/3W
Composition:Thick Film
Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Ratings:AEC-Q200
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.024" (0.60mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.14
4,259

Please send RFQ , we will respond immediately.

Similar Products

Part Number RCWL1210R200JNEA RCWL1210R250JNEA   RCWL1210R500JNEA   RCWL1210R220JNEA   RCWL1210R240JNEA   RCWL1210R270JNEA   RCWL1210R300JNEA   RCWL1218R200JNEA   RCWL1210R100JNEA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active Active Active Active Active
Resistance 200 mOhms 250 mOhms 500 mOhms 220 mOhms 240 mOhms 270 mOhms 300 mOhms 200 mOhms 100 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 0.333W, 1/3W 0.333W, 1/3W 0.333W, 1/3W 0.333W, 1/3W 0.333W, 1/3W 0.333W, 1/3W 0.333W, 1/3W 1W 0.333W, 1/3W
Composition Thick Film Thick Film Thick Film Thick Film Thick Film Thick Film Thick Film Thick Film Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Package / Case 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1210 (3225 Metric) 1218 (3246 Metric) 1210 (3225 Metric)
Supplier Device Package 1210 1210 1210 1210 1210 1210 1210 1218 1210
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.126" L x 0.181" W (3.20mm x 4.60mm) 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm)
Number of Terminations 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - -
