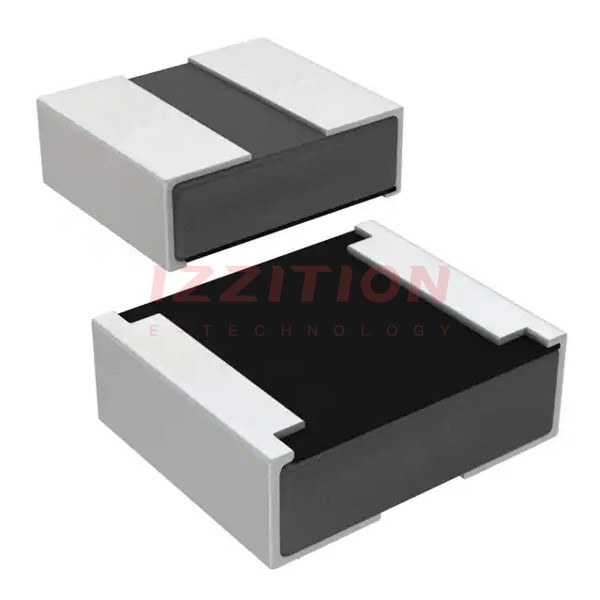

| Part Number | RCP0505W22R0GEC | RCP0505W25R0GEC | RCP0505W22R0JEC | RCP0505W24R0GEC | RCP0505W27R0GEC | RCP0505W22R0GED | RCP0505W22R0GET | RCP0505W20R0GEC | RCP0505W22R0GEA | RCP0505W22R0GEB |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 22 Ohms | 25 Ohms | 22 Ohms | 24 Ohms | 27 Ohms | 22 Ohms | 22 Ohms | 20 Ohms | 22 Ohms | 22 Ohms |
| Tolerance | ±2% | ±2% | ±5% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power (Watts) | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W | 1.4W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Operating Temperature | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C | -65°C ~ 155°C |
| Package / Case | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) | 0505 (1412 Metric) |
| Supplier Device Package | 0505 | 0505 | 0505 | 0505 | 0505 | 0505 | 0505 | 0505 | 0505 | 0505 |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) |
| Height - Seated (Max) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) | 0.025" (0.64mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
