Please send RFQ , we will respond immediately.

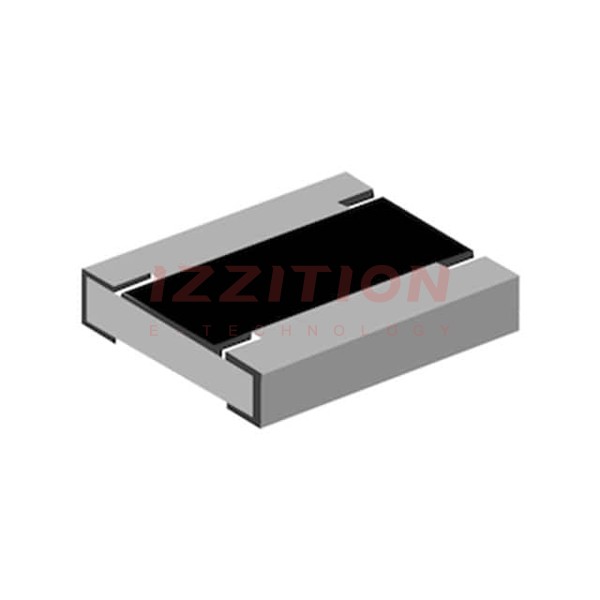

| Part Number | RCL10201M00FKEF | RCL10201R00FKEF | RCL10201K00FKEF |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Resistance | 1 MOhms | 1 Ohms | 1 kOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200 | Automotive AEC-Q200 | Automotive AEC-Q200 |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Wide 2010 (5025 Metric), 1020 | Wide 2010 (5025 Metric), 1020 | Wide 2010 (5025 Metric), 1020 |
| Supplier Device Package | 1020 | 1020 | 1020 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.098" L x 0.197" W (2.50mm x 5.00mm) | 0.098" L x 0.197" W (2.50mm x 5.00mm) | 0.098" L x 0.197" W (2.50mm x 5.00mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
