RCC1206560RFKEA
  • Share:

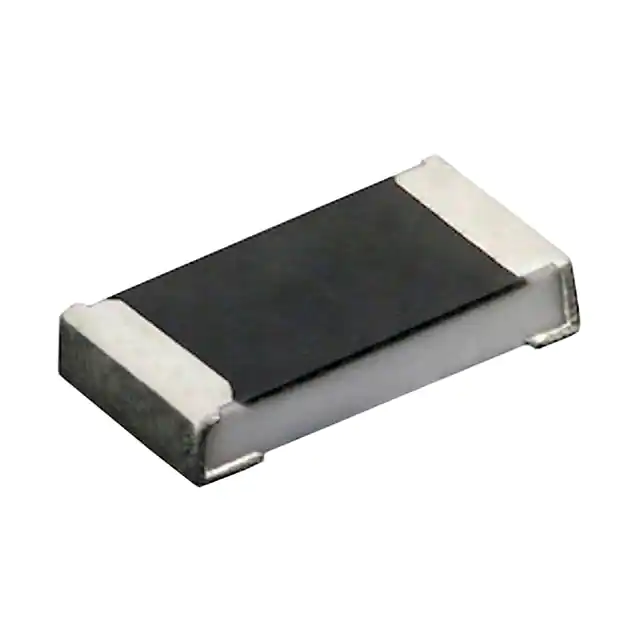

Vishay Dale RCC1206560RFKEA

Manufacturer No:
RCC1206560RFKEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
RCC1206560RFKEA Datasheet
ECAD Model:
-
Description:
RCC1206 100 560R 1% ET1 E3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:560 Ohms
Tolerance:±1%
Power (Watts):0.5W, 1/2W
Composition:Thick Film
Features:Automotive AEC-Q200
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206
Ratings:AEC-Q200
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.024" (0.60mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.36
1,826

Please send RFQ , we will respond immediately.

Similar Products

Part Number RCC1206560RFKEA RCC1206510RFKEA
Manufacturer Vishay Dale Vishay Dale
Product Status Active Active
Resistance 560 Ohms 510 Ohms
Tolerance ±1% ±1%
Power (Watts) 0.5W, 1/2W 0.5W, 1/2W
Composition Thick Film Thick Film
Features Automotive AEC-Q200 Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C
Package / Case 1206 (3216 Metric) 1206 (3216 Metric)
Supplier Device Package 1206 1206
Ratings AEC-Q200 AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm) 0.024" (0.60mm)
Number of Terminations 2 2
Failure Rate - -
