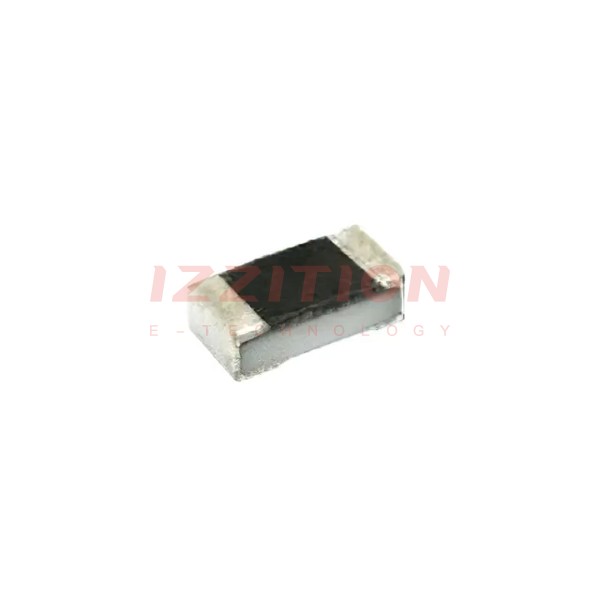

| Part Number | RCA08051M00JNEA | RCA08051R00JNEA | RCA08051K00JNEA |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Resistance | 1 MOhms | 1 Ohms | 1 kOhms |
| Tolerance | ±5% | ±5% | ±5% |
| Power (Watts) | 0.125W, 1/8W | 0.125W, 1/8W | 0.125W, 1/8W |
| Composition | Thick Film | Thick Film | Thick Film |
| Features | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 | 0805 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.079" L x 0.049" W (2.01mm x 1.25mm) |
| Height - Seated (Max) | 0.020" (0.50mm) | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
