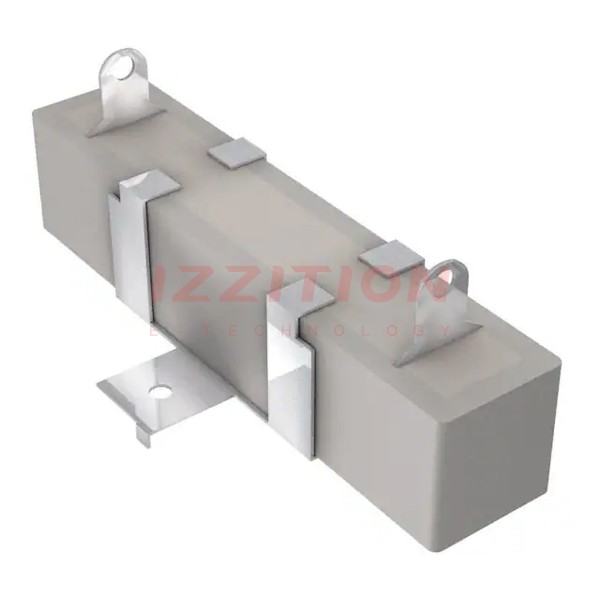

| Part Number | PC-301R000KE66BKT | PC-301R100KE66BKT | PC-302R000KE66BKT | PC-501R000KE66BKT |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 1 Ohms | 1.1 Ohms | 2 Ohms | 1 Ohms |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Power (Watts) | 30W | 30W | 30W | 50W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 275°C | -55°C ~ 275°C | -55°C ~ 275°C | -55°C ~ 275°C |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Coating, Housing Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Mounting Feature | Brackets | Brackets | Brackets | Brackets |
| Size / Dimension | 2.953" L x 0.748" W (75.00mm x 19.00mm) | 2.953" L x 0.748" W (75.00mm x 19.00mm) | 2.953" L x 0.748" W (75.00mm x 19.00mm) | 3.543" L x 0.748" W (90.00mm x 19.00mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.748" (19.00mm) | 0.748" (19.00mm) | 0.748" (19.00mm) |
| Lead Style | Quick Connects, 0.250" (6.35mm) | Quick Connects, 0.250" (6.35mm) | Quick Connects, 0.250" (6.35mm) | Quick Connects, 0.250" (6.35mm) |
| Package / Case | Radial, Rectangular Case | Radial, Rectangular Case | Radial, Rectangular Case | Radial, Rectangular Case |
| Failure Rate | - | - | - | - |
