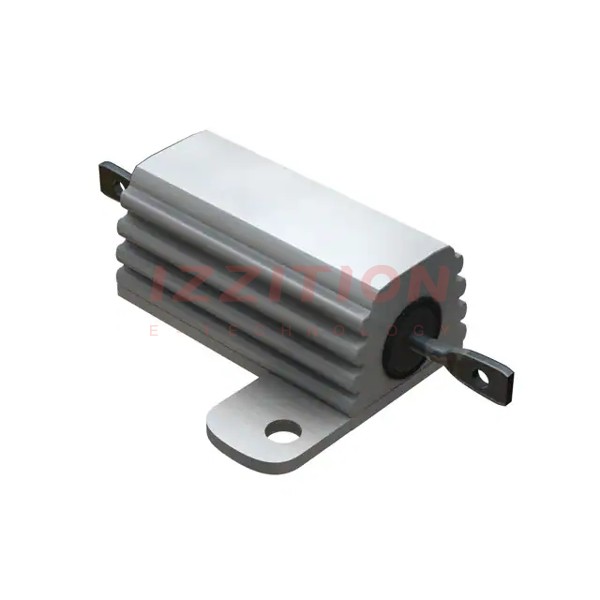

| Part Number | NH2503K000FJ01 | NH2505K000FJ01 | NH2501K000FJ01 | NH2502K000FJ01 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Resistance | 3 kOhms | 5 kOhms | 1 kOhms | 2 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 250W | 250W | 250W | 250W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C | ±20ppm/°C |
| Operating Temperature | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C | -55°C ~ 250°C |
| Features | Moisture Resistant, Non-Inductive | Moisture Resistant, Non-Inductive | Moisture Resistant, Non-Inductive | Moisture Resistant, Non-Inductive |
| Coating, Housing Type | Aluminum | Aluminum | Aluminum | Aluminum |
| Mounting Feature | Flanges | Flanges | Flanges | Flanges |
| Size / Dimension | 4.500" L x 3.000" W (114.30mm x 76.20mm) | 4.500" L x 3.000" W (114.30mm x 76.20mm) | 4.500" L x 3.000" W (114.30mm x 76.20mm) | 4.500" L x 3.000" W (114.30mm x 76.20mm) |
| Height - Seated (Max) | 2.219" (56.37mm) | 2.219" (56.37mm) | 2.219" (56.37mm) | 2.219" (56.37mm) |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Axial, Box | Axial, Box | Axial, Box | Axial, Box |
| Failure Rate | - | - | - | - |
