MTPL-2516-S12V
  • Share:

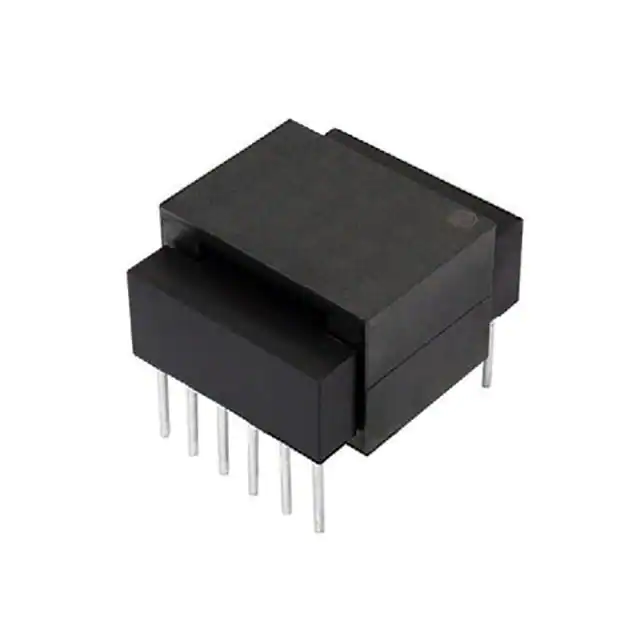

Vishay Dale MTPL-2516-S12V

Manufacturer No:
MTPL-2516-S12V
Manufacturer:
Vishay Dale
Package:
Tray
Datasheet:
MTPL-2516-S12V Datasheet
ECAD Model:
-
Description:
PLANAR TRANSFORMER 2516
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Applications:-
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:120V
Voltage - Auxiliary:-
Voltage - Isolation:-
Inductance @ Frequency:450µH @ 100kHz
Frequency:100kHz ~ 500kHz
Operating Temperature:-55°C ~ 130°C
Mounting Type:Through Hole
Size / Dimension:1.181" L x 1.024" W (30.00mm x 26.00mm)
Height - Seated (Max):0.650" (16.51mm)
Footprint:-
Style:Planar
0 Remaining View Similar

In Stock

$16.76
45

Please send RFQ , we will respond immediately.
