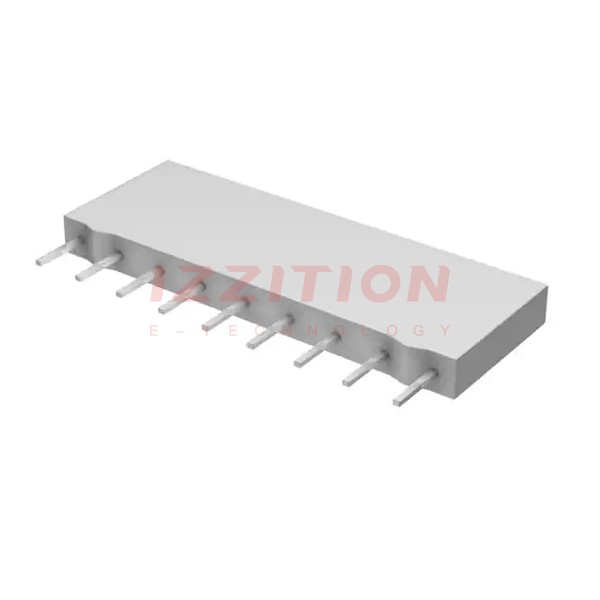

| Part Number | MSP10C01180RGEJ | MSP10C01680RGEJ | MSP10C03180RGEJ | MSP10A01180RGEJ | MSP10C01100RGEJ |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Isolated | Bussed | Bussed |
| Resistance (Ohms) | 180 | 680 | 180 | 180 | 100 |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 9 | 5 | 9 | 9 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 10 | 10 | 10 | 10 | 10 |
| Power Per Element | 250mW | 250mW | 400mW | 200mW | 250mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.990" L x 0.090" W (25.15mm x 2.29mm) | 0.990" L x 0.090" W (25.15mm x 2.29mm) | 0.990" L x 0.090" W (25.15mm x 2.29mm) | 0.990" L x 0.090" W (25.15mm x 2.29mm) | 0.990" L x 0.090" W (25.15mm x 2.29mm) |
| Height - Seated (Max) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.350" (8.89mm) | 0.195" (4.95mm) | 0.350" (8.89mm) |
