Please send RFQ , we will respond immediately.

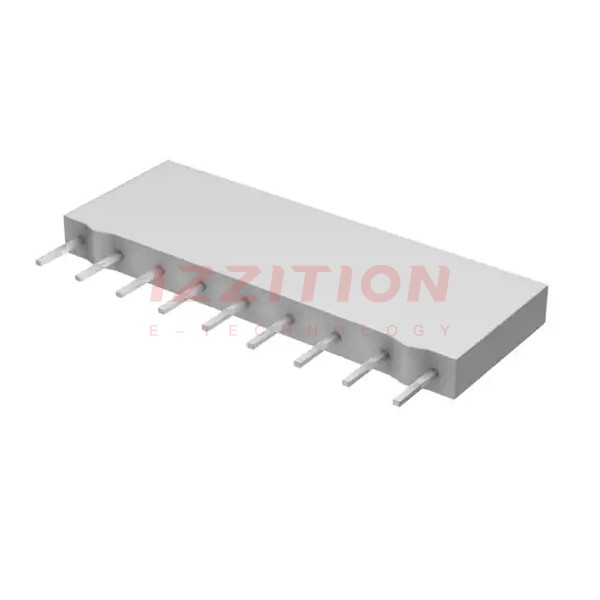

| Part Number | MSP06C01180RGEJ | MSP08C01180RGEJ | MSP06C01100RGEJ | MSP06C01150RGEJ |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 180 | 180 | 100 | 150 |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 5 | 7 | 5 | 5 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 6 | 8 | 6 | 6 |
| Power Per Element | 250mW | 250mW | 250mW | 250mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 8-SIP | 6-SIP | 6-SIP |
| Supplier Device Package | 6-SIP | 8-SIP | 6-SIP | 6-SIP |
| Size / Dimension | 0.590" L x 0.090" W (14.99mm x 2.29mm) | 0.790" L x 0.090" W (20.07mm x 2.29mm) | 0.590" L x 0.090" W (14.99mm x 2.29mm) | 0.590" L x 0.090" W (14.99mm x 2.29mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.350" (8.89mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
