MGDT100125LF
  • Share:

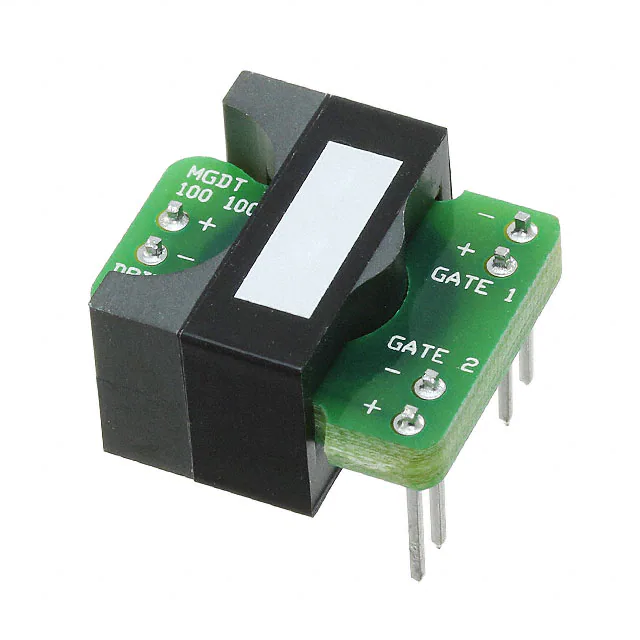

Vishay Dale MGDT100125LF

Manufacturer No:
MGDT100125LF
Manufacturer:
Vishay Dale
Package:
Tray
Datasheet:
MGDT100125LF Datasheet
ECAD Model:
-
Description:
PLANAR GATE-DRIVE XFMR, 1 : 1.25
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transformer Type:Gate Drive
Inductance:240µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1:1.25:1.25
Mounting Type:Through Hole
Size / Dimension:0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max):0.450" (11.43mm)
Operating Temperature:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$12.46
21

Please send RFQ , we will respond immediately.
