MGDT100100-SM
  • Share:

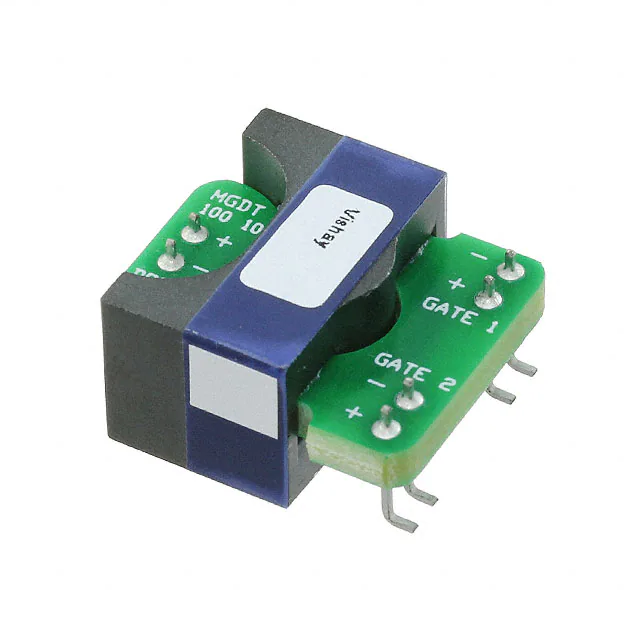

Vishay Dale MGDT100100-SM

Manufacturer No:
MGDT100100-SM
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
MGDT100100-SM Datasheet
ECAD Model:
-
Description:
PLANAR GATE-DRIVE XFMR, 1 : 1 :
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Transformer Type:Gate Drive
Inductance:240µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1:1:1
Mounting Type:Surface Mount
Size / Dimension:0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max):0.450" (11.43mm)
Operating Temperature:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$13.37
53

Please send RFQ , we will respond immediately.
