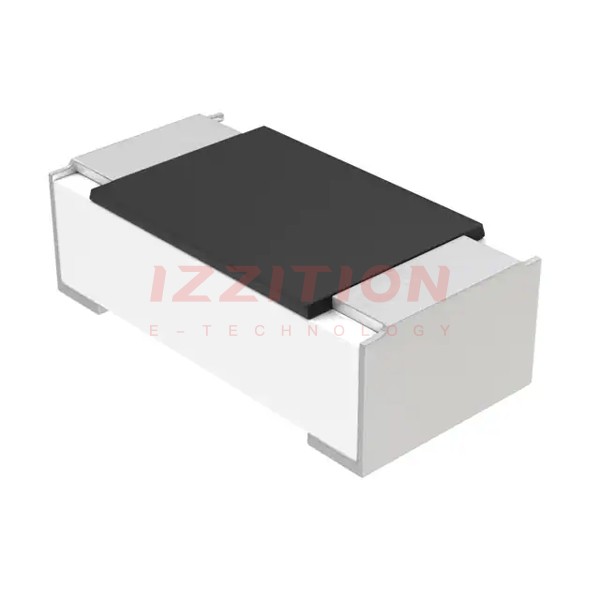

| Part Number | MCS0402MD1004BE000 | MCS0402MD1000BE000 | MCS0402MD1001BE000 | MCS0402MD1002BE000 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Beyschlag/Draloric/BC Components | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Resistance | 1 MOhms | 100 Ohms | - | - |
| Tolerance | ±0.1% | ±0.1% | - | - |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | - | - |
| Composition | Thin Film | Thin Film | - | - |
| Features | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | - | - |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | - | - |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | - | - |
| Supplier Device Package | 0402 | 0402 | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | - | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - |
| Height - Seated (Max) | 0.015" (0.37mm) | 0.015" (0.37mm) | - | - |
| Number of Terminations | 2 | 2 | - | - |
| Failure Rate | - | - | - | - |
