Please send RFQ , we will respond immediately.

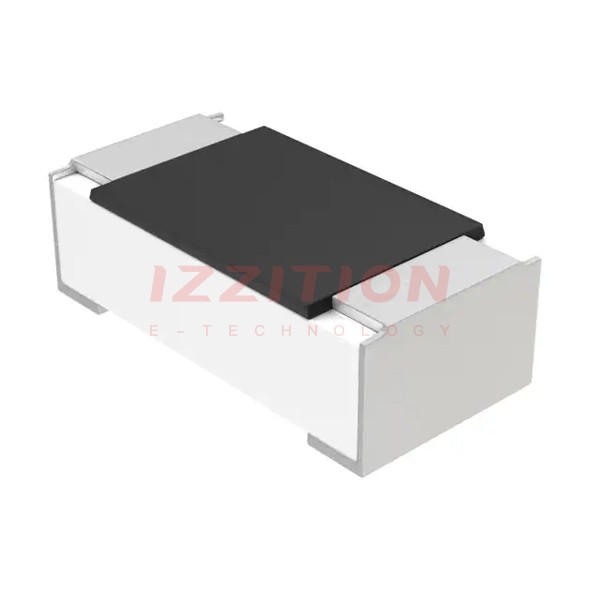

| Part Number | MCS0402MD1002BE000 | MCS0402MD1004BE000 | MCS0402MD2002BE000 | MCS0402MD1002BE100 | MCS0402MD1002DE000 | MCS0402MD1602BE000 | MCS0402MD1802BE000 | MCS0402UD1002BE000 | MCS0402MD1000BE000 | MCS0402MD1001BE000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | - | 1 MOhms | - | 10 kOhms | 10 kOhms | 16 kOhms | 18 kOhms | 10 kOhms | 100 Ohms | - |
| Tolerance | - | ±0.1% | - | ±0.1% | ±0.5% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | - |
| Power (Watts) | - | 0.1W, 1/10W | - | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | - |
| Composition | - | Thin Film | - | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | - |
| Features | - | Anti-Sulfur, Automotive AEC-Q200 | - | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | Anti-Sulfur, Automotive AEC-Q200 | - |
| Temperature Coefficient | - | ±25ppm/°C | - | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | - |
| Operating Temperature | - | -55°C ~ 155°C | - | -55°C ~ 155°C | -55°C ~ 175°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | - |
| Package / Case | - | 0402 (1005 Metric) | - | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | - |
| Supplier Device Package | - | 0402 | - | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 | - |
| Ratings | - | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - |
| Size / Dimension | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
| Height - Seated (Max) | - | 0.015" (0.37mm) | - | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | - |
| Number of Terminations | - | 2 | - | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
