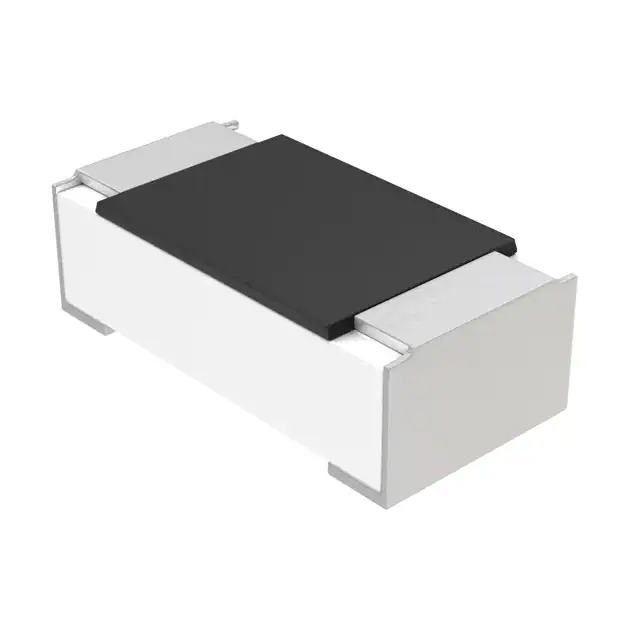

| Part Number | MCS04020D1509DE000 | MCS04020D1009DE000 | MCS04020D1500DE000 | MCS04020D1501DE000 | MCS04020D1502DE000 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | - | 10 Ohms | 150 Ohms | 1.5 kOhms | 15 kOhms |
| Tolerance | - | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Power (Watts) | - | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Composition | - | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | - | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur |
| Temperature Coefficient | - | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | - | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | - | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | - | 0402 | 0402 | 0402 | 0402 |
| Ratings | - | - | - | - | - |
| Size / Dimension | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) |
| Number of Terminations | - | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
