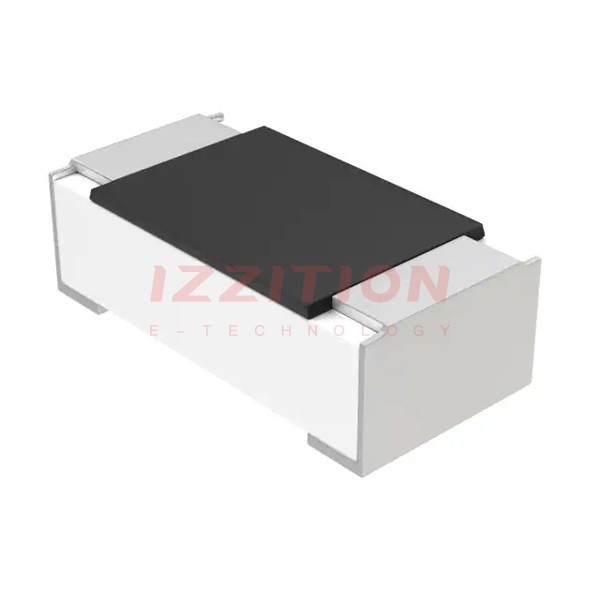

| Part Number | MCS04020D1153BE100 | MCS04020D1653BE100 | MCS04020D1183BE100 | MCS04020D1103BE100 | MCS04020D1133BE100 | MCS04020D1151BE100 | MCS04020D1152BE100 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | - | 165 kOhms | 118 kOhms | 110 kOhms | 113 kOhms | 1.15 kOhms | 11.5 kOhms |
| Tolerance | - | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | - | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W | 0.063W, 1/16W |
| Composition | - | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | - | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur | Anti-Sulfur |
| Temperature Coefficient | - | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | - | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | - | 0402 | 0402 | 0402 | 0402 | 0402 | 0402 |
| Ratings | - | - | - | - | - | - | - |
| Size / Dimension | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) | 0.015" (0.37mm) |
| Number of Terminations | - | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
