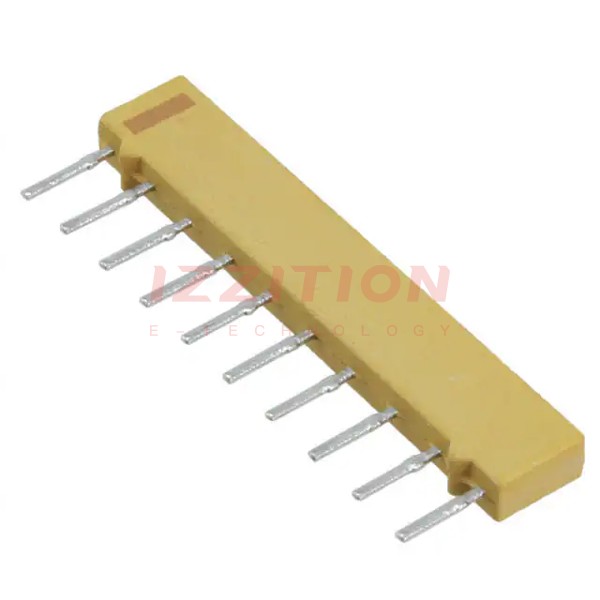

| Part Number | M8340109K1001GCD03 | M8340109K1003GCD03 | M8340109K1002GCD03 | M8340109K1001GGD03 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Isolated |
| Resistance (Ohms) | 1K | 100k | 10k | 1K |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 9 | 9 | 5 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 10 | 10 | 10 | 10 |
| Power Per Element | 120mW | 120mW | 120mW | 120mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Military | Military | Military | Military |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.983" L x 0.098" W (24.97mm x 2.49mm) | 0.983" L x 0.098" W (24.97mm x 2.49mm) | 0.983" L x 0.098" W (24.97mm x 2.49mm) | 0.983" L x 0.098" W (24.97mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
