Please send RFQ , we will respond immediately.

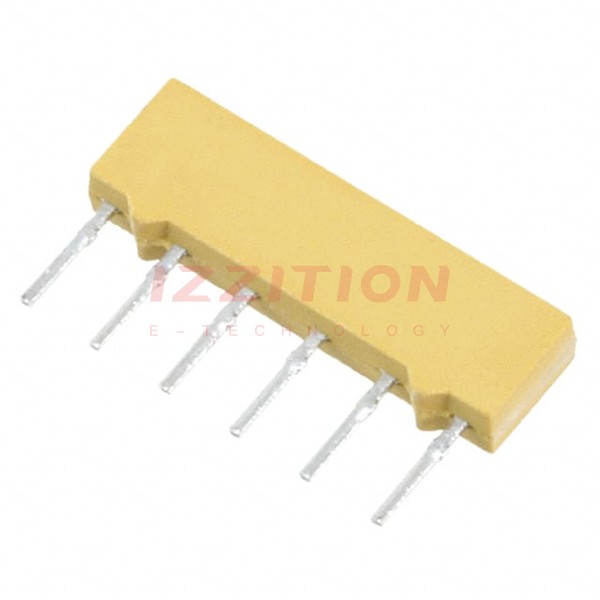

| Part Number | M8340107K1002GCD03 | M8340108K1002GCD03 | M8340109K1002GCD03 | M8340106K1002GCD03 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 10k | 10k | 10k | 10k |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 5 | 7 | 9 | 9 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 6 | 8 | 10 | 10 |
| Power Per Element | 120mW | 120mW | 120mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | Military | Military | Military | Military |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 6-SIP | 8-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 6-SIP | 8-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.583" L x 0.098" W (14.81mm x 2.49mm) | 0.783" L x 0.098" W (19.89mm x 2.49mm) | 0.983" L x 0.098" W (24.97mm x 2.49mm) | 0.983" L x 0.098" W (24.97mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.350" (8.89mm) |
