Please send RFQ , we will respond immediately.

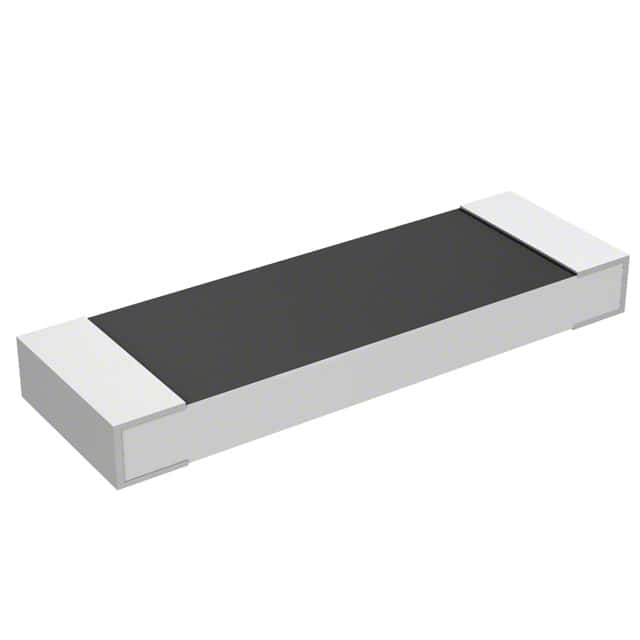

| Part Number | M32159B05MS3 | M32159B08MS3 | M32159B06MS3 | M32159B07MS3 | M32159B02MS3 | M32159B03MS3 | M32159B04MS3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 0 Ohms | 0 Ohms | 0 Ohms | 0 Ohms | 0 Ohms | 0 Ohms | 0 Ohms |
| Tolerance | Jumper | Jumper | Jumper | Jumper | Jumper | Jumper | Jumper |
| Power (Watts) | 0.225W | 0.8W | 0.15W | 0.25W, 1/4W | 0.1W, 1/10W | 0.2W, 1/5W | 0.15W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Military | Military | Military | Military | Military | Military | Military |
| Temperature Coefficient | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Package / Case | Nonstandard | 2010 (5025 Metric) | 0805 (2012 Metric) | 1206 (3216 Metric) | 0505 (1313 Metric) | Nonstandard | Nonstandard |
| Supplier Device Package | 2208 | 2010 | 0705 | 1206 | 0505 | 1005 | 1505 |
| Ratings | - | - | - | - | - | - | - |
| Size / Dimension | 0.230" L x 0.075" W (5.84mm x 1.91mm) | 0.197" L x 0.098" W (5.00mm x 2.49mm) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | 0.125" L x 0.063" W (3.18mm x 1.60mm) | 0.055" L x 0.050" W (1.40mm x 1.27mm) | 0.105" L x 0.050" W (2.67mm x 1.27mm) | 0.155" L x 0.050" W (3.94mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) | 0.033" (0.84mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
