Please send RFQ , we will respond immediately.

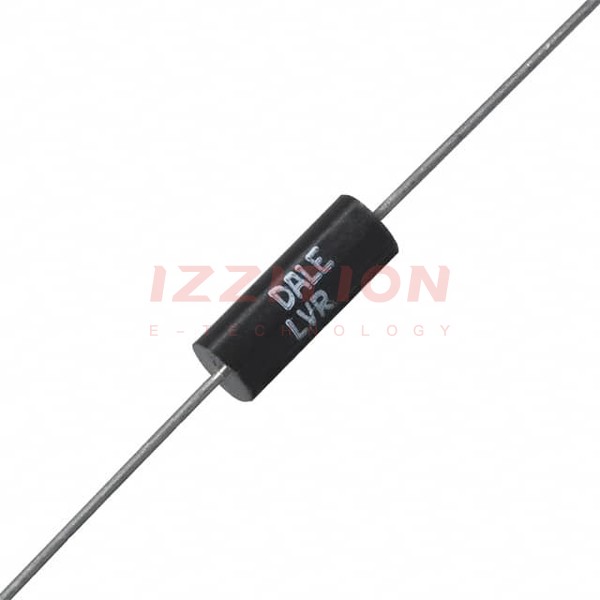

| Part Number | LVR03R0500FE70 | LVR03R0500FS70 | LVR03R0700FE70 | LVR03R1500FE70 | LVR03R0800FE70 | LVR01R0500FE70 | LVR03R0100FE70 | LVR03R0200FE70 | LVR03R0300FE70 | LVR03R0400FE70 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 50 mOhms | 50 mOhms | 70 mOhms | 150 mOhms | 80 mOhms | 50 mOhms | 10 mOhms | 20 mOhms | 30 mOhms | 40 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 1W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±125ppm/°C | ±125ppm/°C | ±125ppm/°C | ±50ppm/°C | ±75ppm/°C | ±300ppm/°C | ±350ppm/°C | ±350ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 175°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.115" Dia x 0.427" L (2.92mm x 10.85mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
