LVR03R0300FS70
  • Share:

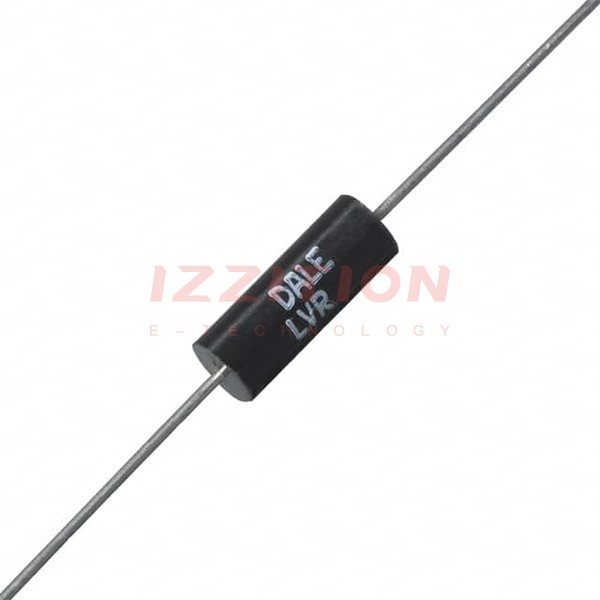

Vishay Dale LVR03R0300FS70

Manufacturer No:
LVR03R0300FS70
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
LVR03R0300FS70 Datasheet
ECAD Model:
-
Description:
RES 0.03 OHM 1% 3W AXIAL WW
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:30 mOhms
Tolerance:±1%
Power (Watts):3W
Composition:Wirewound
Features:Current Sense, Moisture Resistant
Temperature Coefficient:±200ppm/°C
Operating Temperature:-65°C ~ 275°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.205" Dia x 0.560" L (5.21mm x 14.22mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

-
266

Please send RFQ , we will respond immediately.

Similar Products

Part Number LVR03R0300FS70 LVR03R0400FS70   LVR03R0500FS70   LVR03R0700FS70   LVR01R0300FS70   LVR03R0100FS70   LVR03R0200FS70   LVR03R0300FE70
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Resistance 30 mOhms 40 mOhms 50 mOhms 70 mOhms 30 mOhms 10 mOhms 20 mOhms 30 mOhms
Tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Power (Watts) 3W 3W 3W 3W 1W 3W 3W 3W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±125ppm/°C ±125ppm/°C ±400ppm/°C ±350ppm/°C ±350ppm/°C ±200ppm/°C
Operating Temperature -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 175°C -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.115" Dia x 0.427" L (2.92mm x 10.85mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm) 0.205" Dia x 0.560" L (5.21mm x 14.22mm)
Height - Seated (Max) - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - -
