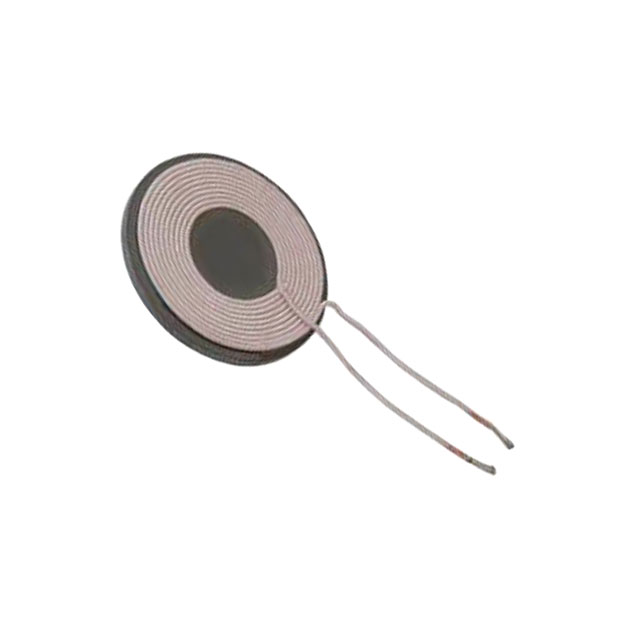

IWTX47R0BEEB6R3J11 Image
×
Favorite
Compare
Add to RFQ
Share:
Vishay Dale IWTX47R0BEEB6R3J11
Manufacturer No:
IWTX47R0BEEB6R3J11
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
IWTX47R0BEEB6R3J11 Datasheet
ECAD Model:
-
Description:
WIRELESS CHARGING COIL
Delivery:
Payment:
Product Attributes
Function:
Transmitter
Type:
1 Coil, 1 Layer
Inductance:
6.3µH
Tolerance:
±5%
DC Resistance (DCR):
38mOhm
Q @ Freq:
190 @ 200kHz
Current Rating (Amps):
7A
Current - Saturation (Isat):
22A
Frequency - Self Resonant:
22MHz
Operating Temperature:
-55°C ~ 105°C
Size / Dimension:
1.85" Dia x 0.19" H (47.0mm x 4.9mm)
