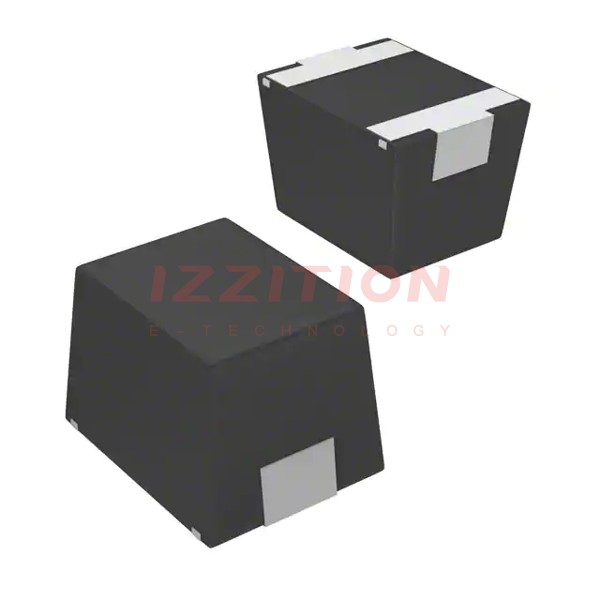

| Part Number | IMC1210SY56NM | IMC1210SY56NK |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 56 nH | 56 nH |
| Tolerance | ±20% | ±10% |
| Current Rating (Amps) | 470 mA | 470 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 330mOhm Max | 330mOhm Max |
| Q @ Freq | 30 @ 50MHz | 30 @ 50MHz |
| Frequency - Self Resonant | 1GHz | 1GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz | 50 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.126" L x 0.098" W (3.20mm x 2.49mm) |
| Height - Seated (Max) | 0.095" (2.41mm) | 0.095" (2.41mm) |
